Why Crane Selection and Lift Planning Matter

Crane operations are among the highest-risk activities on any construction site. A mistake in crane selection, an error in a lift plan, or a shortcut in rigging can result in catastrophic failure, property damage, injuries, or fatalities. OSHA data consistently shows that crane-related incidents are a leading cause of construction deaths, and the vast majority of those incidents trace back to planning failures, not equipment failures.

Beyond safety, crane operations represent some of the largest single line items in a construction budget. A tower crane on a high-rise project might cost $30,000 to $80,000 per month. A 500-ton mobile crane mobilization can run $50,000 to $100,000 before it makes a single pick. Getting the crane selection wrong means either paying for more capacity than you need or, worse, having to bring in a second crane because the first one cannot reach or cannot handle the loads.

This guide walks through the complete process: understanding crane types, selecting the right crane for your project, developing lift plans, managing permits and inspections, and executing safe rigging operations.

Understanding Crane Types

Mobile Cranes

Mobile cranes are the workhorses of most construction projects. They drive to the site, set up, make their picks, and move on. Within the mobile crane category, there are several distinct types:

Truck-mounted cranes are mounted on a standard truck chassis and drive on public roads at highway speeds. Capacities range from 15 to 150 tons. They set up quickly with outriggers and are ideal for short-duration work like setting steel, placing precast panels, or HVAC equipment. The downside is limited off-road mobility and the requirement for firm, level ground under the outriggers.

All-terrain cranes combine the road-traveling ability of a truck crane with better off-road performance. They have multiple axles with all-wheel steering and all-wheel drive. Capacities range from 30 to 1,200 tons. These cranes are the most versatile option for medium to large picks on projects where the crane needs to travel public roads to reach the site.

Rough terrain cranes are designed exclusively for job site use. They have large tires, good ground clearance, and a single cab that serves for both driving and operating. Capacities range from 15 to 165 tons. They cannot travel on public roads at highway speed and need to be transported on a lowboy trailer. Their advantage is maneuverability on unfinished construction sites where ground conditions are poor.

Crawler cranes move on tracks instead of wheels, giving them excellent ground bearing pressure and the ability to travel with a load on the hook (called “pick and carry”). Capacities range from 40 to over 3,000 tons for the largest lattice boom crawlers. They are assembled on site from transported components and are best suited for projects requiring many heavy picks over an extended period. The tracked undercarriage distributes weight over a large area, reducing the need for extensive ground preparation.

Tower Cranes

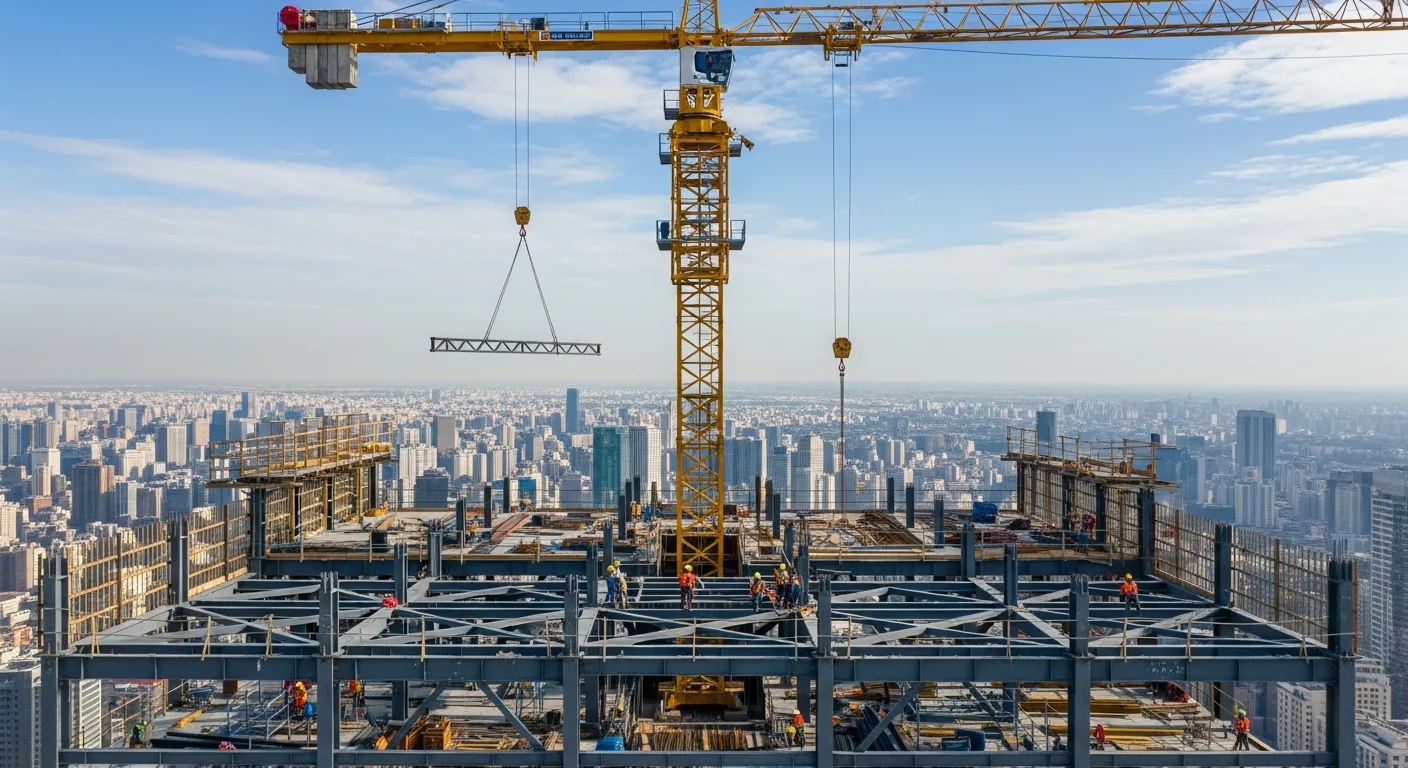

Tower cranes are the tall, fixed cranes you see on high-rise construction projects. They consist of a concrete foundation, a mast (tower) built from stackable sections, a horizontal jib that carries the load, and a counter-jib with counterweights.

Hammerhead tower cranes have a horizontal jib with a trolley that moves the load in and out along the jib’s length. The crane rotates 360 degrees on the mast. Lifting capacity varies by the load’s distance from the mast, with maximum capacity near the mast and minimum capacity at the jib tip.

Luffing jib tower cranes have a jib that raises and lowers to change the operating radius. Their advantage is a smaller slewing radius, making them suitable for congested urban sites where multiple cranes overlap or where the crane cannot swing over neighboring properties.

Self-erecting tower cranes are smaller tower cranes that fold up for transport and erect themselves hydraulically without needing a separate mobile crane. Capacities are lower (typically 2 to 10 tons at the tip) but setup is fast and the cost is significantly less than a full tower crane installation. They work well for mid-rise residential and light commercial projects.

Specialty Cranes

Some projects require specialized lifting equipment:

Hydraulic gantry systems lift and move heavy loads horizontally, commonly used in industrial settings for equipment installation. Helicopter lifts are used when ground access is impossible, like placing HVAC units on mountain-top cell towers. Derrick cranes are sometimes used on top of high-rise buildings for steel erection.

Crane Selection Process

Defining Your Lift Requirements

Before contacting crane companies for quotes, you need to compile the following information for every significant lift on the project:

Weight of each load. This includes the actual load weight, the weight of any rigging hardware (slings, shackles, spreader beams), and the weight of any below-the-hook lifting devices. When in doubt, weigh it. Estimated weights from drawings have a nasty habit of being wrong, especially for mechanical equipment.

Required radius for each pick. Measure from the center of the crane’s rotation to the center of the load at both the pick point and the set point. The controlling radius is the larger of the two. Remember that the crane must also clear any obstacles between the pick and set points.

Required lift height. Measure from the crane’s working surface to the highest point the load must reach, plus clearance for the load to clear any obstacles, plus the length of the rigging below the hook. Add at least 10 feet of clearance above the set point for maneuvering.

Number of picks and project duration. A single heavy pick might justify a large mobile crane for one day. Hundreds of picks over months justify a tower crane installation.

Site access and ground conditions. How will the crane get to the site? What is the ground bearing capacity where it will set up? Are there overhead power lines, bridges with weight limits, or other obstructions?

Reading and Applying Load Charts

The load chart is the most important document in crane operations. It tells you exactly what the crane can lift at every combination of boom length and operating radius. Misreading a load chart is one of the most common causes of crane overloading.

Key principles of load chart use:

Capacity decreases as radius increases. A crane might lift 100 tons at a 20-foot radius but only 30 tons at a 60-foot radius. This relationship is not linear.

Capacity changes with boom length. Adding boom sections or a jib extension reduces capacity at any given radius because the boom itself gets heavier and the geometry changes.

Load charts assume specific conditions. Most charts are based on the crane sitting on firm, level ground with outriggers fully extended. Operating on a slope, with outriggers partially extended, or on soft ground reduces the actual safe capacity below what the chart shows.

Always work with net capacity. The load chart shows gross capacity. Subtract the weight of the hook block, rigging hardware, spreader beams, and any below-the-hook lifting devices to determine how much actual load you can pick.

Factors That Affect Crane Selection

Beyond the basic capacity and reach requirements, several factors influence which crane is the best fit:

Mobilization and demobilization costs. A 300-ton crawler crane might cost $40,000 to $80,000 just to get to the site and assemble. If you only need it for two days of picks, a 500-ton all-terrain crane that mobilizes for $15,000 might be more economical even at a higher hourly rate.

Setup footprint. Tower cranes need a foundation and dedicated space for the mast and jib. Large mobile cranes need outrigger pads that can extend 30 feet or more from the crane body. On tight urban sites, the crane’s setup footprint often drives the selection more than its lifting capacity.

Multiple crane interference. On large projects with multiple cranes, you need to ensure the cranes can work without their booms or loads colliding. This requires careful planning of crane locations, heights, and operating zones. Luffing jib tower cranes help in congested situations because they do not swing over as much area as hammerhead cranes.

Ground bearing capacity. Every crane exerts significant point loads through its outriggers or tracks. A 200-ton truck crane might put 60,000 pounds on a single outrigger pad. If the ground cannot support that load, the outrigger sinks, the crane tilts, and you have a serious problem. Ground preparation might include compacted gravel pads, timber mats, or even concrete pads under outrigger locations.

Developing a Lift Plan

Standard vs. Critical Lift Plans

Not every crane pick needs a full engineered lift plan, but every pick needs some level of planning.

Standard lift plans cover routine picks where the load is well within the crane’s capacity (typically under 75 percent of rated capacity), the rigging is straightforward, and there are no unusual hazards. A standard plan might be a one-page document showing the crane configuration, load weight, rigging arrangement, and pick/set locations.

Critical lift plans are required for higher-risk picks and are significantly more detailed. A critical lift typically requires:

• A professional engineer’s review and stamp on the plan
• Detailed load calculations showing the actual load, rigging weight, and total weight as a percentage of the crane’s rated capacity
• A rigging diagram showing every sling, shackle, and connection point
• Ground bearing analysis under outrigger or crawler track locations
• A site plan showing crane position, swing path, and any overhead or underground hazards
• A communication plan designating who gives signals to the operator
• Weather restrictions specific to the lift
• A contingency plan if the lift must be stopped mid-pick

Elements of a Complete Lift Plan

A thorough lift plan includes:

Load information: Weight, dimensions, center of gravity, pick points, and any special handling requirements. If the load is not symmetrical, the center of gravity calculation is critical for proper rigging.

Crane configuration: Crane model, boom length, counterweight configuration, outrigger positions, and operating radius at both pick and set points. Include the specific section of the load chart being used.

Rigging plan: Type and capacity of every sling, shackle, and hardware component. Sling angles must be calculated, as capacity decreases significantly at angles below 60 degrees from horizontal. The minimum sling angle for most hardware is 30 degrees.

Site plan: An overhead view showing crane location, swing arc, pick zone, set zone, exclusion zones where people must stay clear, and the location of the signal person. Mark any overhead power lines, buildings, or other obstructions.

Sequence of operations: A step-by-step procedure from initial setup through load placement and rigging removal. For complex or tandem lifts, this sequence is rehearsed in a pre-lift meeting.

Permits and Regulatory Requirements

Federal Requirements

OSHA Subpart CC (29 CFR 1926.1400-1442) is the primary federal regulation governing crane operations in construction. Key requirements include:

Cranes must be operated by qualified and certified operators. OSHA recognizes certifications from NCCCO (National Commission for the Certification of Crane Operators), CIC (Crane Institute Certification), and NCCER.

A competent person must inspect the crane before each shift. A qualified person must perform monthly and annual inspections.

Written procedures are required for assembly and disassembly of cranes. Power line safety clearances must be maintained (minimum 20 feet from lines up to 350kV).

FAA notification is required when any structure (including crane booms) will exceed 200 feet above ground level or is within a certain distance of an airport. File Form 7460-1 at least 45 days before erecting the crane. The FAA may require obstruction lighting on tall crane booms.

State and Local Requirements

Requirements vary significantly by jurisdiction:

Many cities require a crane permit before any crane operates within city limits. The permit application typically requires the lift plan, crane inspection certificates, operator certification, and proof of insurance.

Street closure and sidewalk protection permits are needed when crane operations affect public right-of-way. Some cities require police flaggers for loads swung over streets.

Tower crane installation permits often require a structural engineer’s review of the foundation design and an inspection of the foundation before the crane is erected.

Check local requirements early in the planning process. Permit processing can take weeks, and some jurisdictions require public notification periods. Getting caught without required permits can shut down your crane operations and result in significant fines.

Insurance Requirements

Crane operations require specific insurance coverage:

Crane liability insurance covers damage caused by the crane or its load to third-party property or persons. Minimum limits are typically $1 million to $5 million depending on the project and jurisdiction.

Rigger’s liability covers damage to the load being lifted. This is separate from crane liability and covers situations where the load is dropped or damaged during the lift.

If you are renting a crane with an operator (operated rental), the rental company typically carries the crane liability insurance, but verify coverage limits and ensure they meet your project’s requirements. If you are renting a bare crane (without operator), you need to carry the insurance yourself.

Rigging Fundamentals

Types of Rigging Hardware

Wire rope slings are the most common rigging for heavy construction lifts. They are available in various configurations: single-leg, two-leg bridle, three-leg, and four-leg. Wire rope has excellent strength but can be damaged by sharp edges, kinks, or abrasion. Inspect for broken wires, kinks, crushing, corrosion, and heat damage.

Synthetic web slings (nylon or polyester) are lighter and less likely to damage finished surfaces. They are good for lighter loads and situations where the load has a smooth surface. However, they are easily cut by sharp edges and degrade with UV exposure, heat, and chemical contact. Never use synthetic slings near hot surfaces or welding operations.

Chain slings are extremely durable and resist heat, abrasion, and cutting. They are ideal for rough, sharp-edged loads and hot environments. Chain is heavier than wire rope for the same capacity, and damaged links can be difficult to spot. Inspect for stretched, bent, or cracked links.

Shackles connect slings to each other, to the crane hook, or to the load’s pick points. They come in screw-pin and bolt-type configurations. Always use shackles rated for the load, and never side-load a shackle, as the rated capacity assumes the load is applied along the shackle’s pin axis.

Spreader beams and lifting beams distribute the load across multiple pick points or maintain a specific sling angle. They are engineered lifting devices and must be designed for the specific loads they will handle. Each spreader beam should have a capacity plate showing its rated load.

Sling Angles and Capacity

This concept is critical and frequently misunderstood: as the angle of a sling from vertical increases, the tension in the sling increases dramatically.

In a two-leg sling arrangement, the sling capacity at a 60-degree angle from horizontal is only 87 percent of the vertical rating. At 45 degrees, it drops to 71 percent. At 30 degrees, only 50 percent.

The practical consequence: if your load weighs 10,000 pounds and you use a two-leg bridle sling, each sling leg must support at least 5,000 pounds at the vertical angle. But if the sling angle is 45 degrees, each leg must support approximately 7,070 pounds due to the geometric loading.

Never rig a load with sling angles less than 30 degrees from horizontal. The forces multiply so dramatically that it creates extreme danger of overloading the sling or the pick points on the load.

Pre-Lift Checks and Communication

Before every lift, the rigging crew should:

Verify all rigging hardware is in good condition with legible capacity tags. Confirm the load weight matches the lift plan. Check sling angles and verify they fall within acceptable ranges. Ensure the load is properly secured and will not shift during the lift. Confirm the signal person and operator have established communication (hand signals, radio, or both). Verify the exclusion zone is clear of unauthorized personnel. Check wind conditions against the lift plan’s weather restrictions.

The signal person is the single point of communication between the ground crew and the crane operator. Only one person gives signals at a time (except for emergency stop signals, which anyone can give). Standard hand signals are defined by ASME B30.5 and must be understood by everyone involved in the lift.

Inspection Requirements

Daily (Pre-Shift) Inspections

Before each shift, a competent person must inspect:

The crane’s general condition, including wire ropes, hooks, sheaves, and boom sections. All safety devices, including load moment indicators, anti-two-block devices, and boom angle indicators. Hydraulic systems for leaks. Tire condition and inflation (for rubber-tired cranes). Outrigger pads and supports. Ground conditions at the crane’s operating location.

Monthly Inspections

Monthly inspections must be documented in writing and include everything in the daily inspection plus a more thorough examination of structural members, welds, bolts, and pins. Check wire ropes for broken wires, diameter reduction, and corrosion. Test all safety and operational aids.

Annual Inspections

Annual inspections follow the manufacturer’s recommendations and typically include a full structural inspection, non-destructive testing of critical welds, load testing (if required by the manufacturer), and a complete review of all safety systems. The annual inspection report becomes part of the crane’s permanent record.

Planning for Tower Crane Installation

If your project requires a tower crane, the planning process starts months before the crane arrives:

Foundation design must be engineered for the specific crane model, maximum freestanding height, and loading conditions. Tower crane foundations are typically large reinforced concrete pads or drilled shafts that resist the overturning moment generated by the crane’s jib and load.

Erection planning requires a separate mobile crane large enough to lift the tower crane’s components into place. The erection crane needs its own lift plans, ground preparation, and access route. Tower crane erection is itself a critical lift operation.

Climbing (jacking) plan outlines how the tower crane will be raised to its full height as the building progresses. Internal climbing cranes jack up through the building’s floor openings. External climbing cranes add mast sections from the outside.

Dismantling plan is essentially the erection plan in reverse and should be planned before the crane goes up. Many projects have been surprised by the difficulty of getting a large mobile crane back to the site for dismantling when surrounding buildings or completed site work block the original access route.
